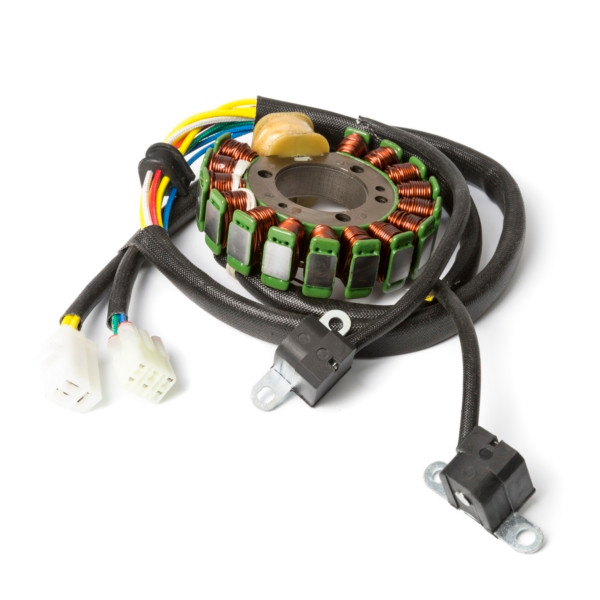

Kimpex HD Stator 285728 for Yamaha Wolverine 350 4x4 1995-1999

Part Note: There are TWO different stators that fits on Yamaha YFM 350 Wolverine 1995-1999. This only replaces the stator that is 93mm/3.66in in diameter.

Fits:

Make	Model	Year	Note
Yamaha	Wolverine 350 YFM350FX 4x4	1995-1999	Only replaces the stator if it is 93mm/3.66in in diameter.

Specifications
Compatible Brand:	Fits Yamaha
Internal Diameter (mm):	35
External Diameter (mm):	93
Thickness (mm):	16
Number of wires:	8
Number of connectors:	2
Number of terminals:	8
Notes:	N/A
Number:	285728

Product Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
