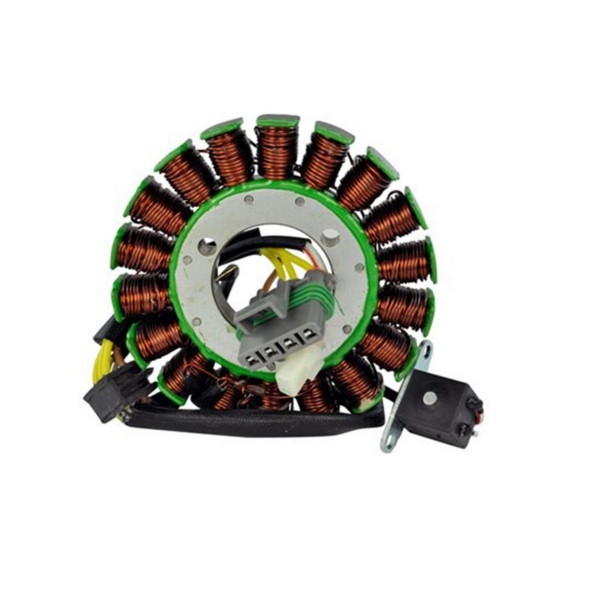

Kimpex HD Stator 285642 Replaces Polaris 3089906/3089959/3090081

Fits:

Make	Model	Year
Polaris	Ranger 500 4X4	2006-2007
Polaris	Ranger 500 4x4 EFI	2006-2009
Polaris	Ranger 500 4x4 EFI	2011-2012
Polaris	Ranger 500 4x4 HO EFI	2010
Polaris	Ranger 500 LE Midsize EFI	2013
Polaris	Ranger 500 Midsize EFI	2013
Polaris	Ranger Crew 500 4X4	2011-2012
Polaris	Ranger Crew 500 Midsize	2013
Polaris	Sportsman 500 4x4 Browning HO EFI	2006
Polaris	Sportsman 500 4x4 HO	2006
Polaris	Sportsman 500 4x4 HO	2009-2010
Polaris	Sportsman 500 4x4 HO EFI	2006-2009
Polaris	Sportsman 500 Forest Tractor	2011-2013
Polaris	Sportsman 500 Touring EFI	2008-2009
Polaris	Sportsman X2 500 Deluxe EFI	2007
Polaris	Sportsman X2 500 EFI	2006-2009

Specifications
Compatible Brand:	Fits Polaris
Internal Diameter (mm):	41
External Diameter (mm):	114
Thickness (mm):	14
Number of wires:	6
Number of connectors:	2
Number of terminals:	7
Notes:	N/A
Number:	285642

Product Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
