Honda

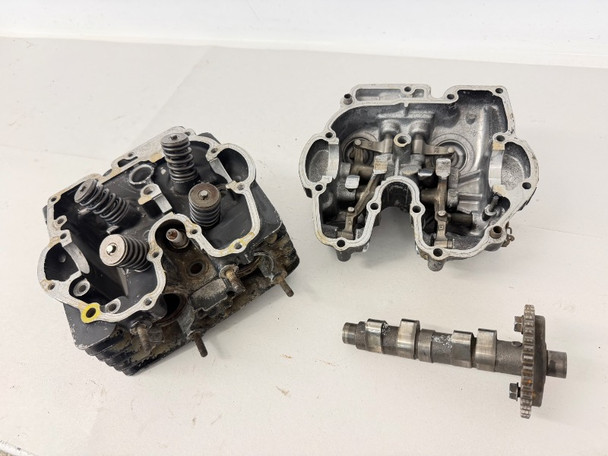

1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985

(No reviews yet) Write a Review
SKU:
ALS 9.14.26 33
MPN:
12200-KK0-000 12311-KK0-010
Condition:
Used
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
  • 1985 Honda XR 200 R 4 Valve 4 VALVE Cylinder Head and Head Cover 1984-1985
$400.00
Frequently bought together:

Description

Part came from a:

1985 Honda XR 200R 4 Valve

Fits:

1984-1985 Honda XR200R 4 Valve

Please contact us with fitment questions.

Description:

Camshaft lobe peak dimensions: Intake 1: 29.18mm // Exhaust 1: 29.23mm // Intake 2: 29.13mm // Exhaust 2: 29.11mm. Camshaft lobes and rockers are smooth but intake lobes and rockers are smoother to the touch than the exhaust lobes and rockers. There is a broken bolt in the dole pin highlighted with yellow; that will need to be drilled out and tapped. Some bolt holes have been tapped 6mm but a bolt smoothly threads into all. During leak down test there is a slight leak through intake seat and marked with a smaller "X". Compared to exhaust which failed leak down test and did not seal and is marked with the larger "X".
