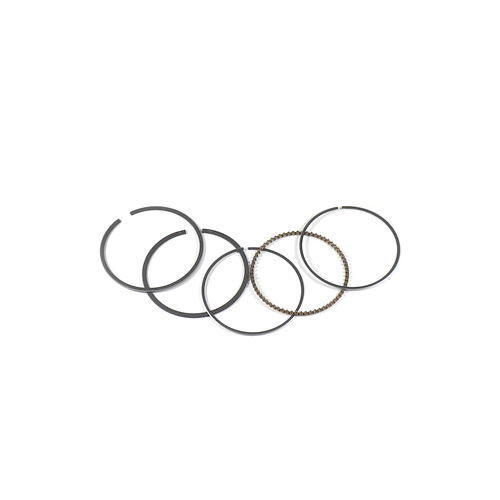

Shindy 65.5mm +0.5mm Piston Rings 04-513
- SKU:
- DS01-1716
- MPN:
- 04-513
- Condition:
- New
Description
Important: The use of ring pliers is recommended when installing piston rings to avoid splitting or cracking the rings.
| Specifications | |
|---|---|
| Oversize: | +0.50mm |
| Install Bore Size: | 65.50mm |
| Stock Bore Size: | 65mm |
Product Features
- Made in Japan
- Fits either Shindy or OEM pistons
- Designed to OEM specifications and manufactured from top quality materials
- Refer to OEM service manual when setting ring gap
- Piston rings have a top and bottom face. The top face is stamped with a 'T'
| Make | Model | Year |
|---|---|---|
| Honda | ATC200 | 1981-1983 |
| Honda | ATC200M | 1984-1985 |
| Honda | ATC200S | 1984-1986 |
| Honda | ATC200X | 1983-1987 |
| Honda | Big Red 200 ATC200E | 1982-1983 |
| Honda | Big Red 200 ATC200ES | 1984 |
| Honda | FourTrax 200 TRX200SX 2x4 | 1986-1988 |
| Honda | TRX200 | 1984 |
