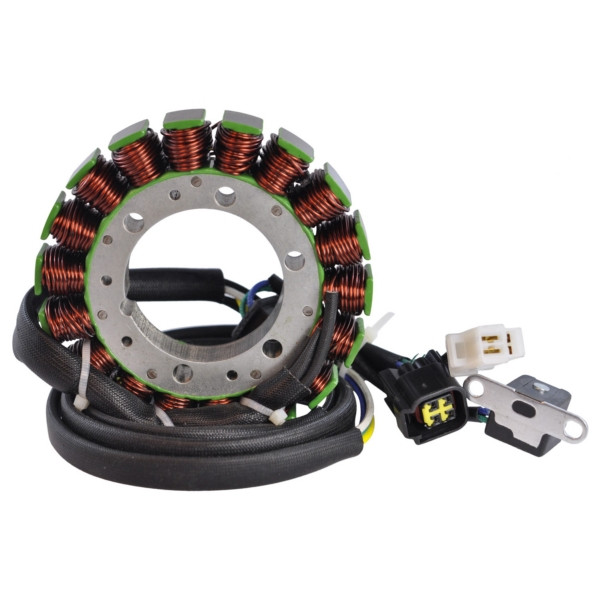

Kimpex HD Stator 285696

Fits:

Make	Model	Year	Note
Arctic Cat	400 2x4	2000-2001
Arctic Cat	400 2x4	2002	Manual
Arctic Cat	400 4X4	1998-2001
Arctic Cat	400 4x4 EFI	2002	Manual
Arctic Cat	500 4X4	1998-2001
Arctic Cat	500 4X4	2002	FIS
Arctic Cat	500 4x4 Automatic	2000-2001
Arctic Cat	500 4x4 Automatic	2002	ATC; FIS
Arctic Cat	500 4x4 LE Automatic	2001
Arctic Cat	500 4x4 Limited	2001
Arctic Cat	500 4x4 TBX Automatic	2002
Arctic Cat	Bearcat 454 2x4	1997-1998
Arctic Cat	Bearcat 454 4X4	1996-1998
Suzuki	Quadmaster 500 LTA500F 4x4	2000-2001
Suzuki	Quadrunner 500 LTF500F 4x4	1998-2002	Only replaces stator with 4-terminal female gray rounded connector with female locking tab.

Specifications
Compatible Brand:	Fits Arctic cat
Internal Diameter (mm):	53
External Diameter (mm):	114
Thickness (mm):	18
Number of wires:	7
Number of connectors:	2
Number of terminals:	7
Notes:	N/A
Number:	285696

Product Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
