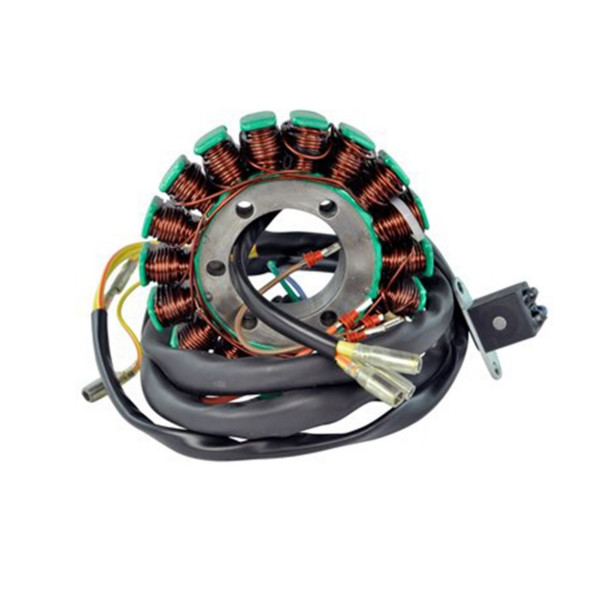

Kimpex HD Stator 285670 for Polaris Sportsman 600 700 Twin 2004-2006 MV7 2005

Part Note: This stator requires reusing your original 16-terminal connector. Please de-pin the stator wires from the connector, and install the new stator wires, being careful to keep color and location the same. A new jumper is included for applications that use a 3-terminal connector wiring jumper. Do not use this jumper if the original does not have a 3-terminal connector wiring jumper. Other applications will instead have a 2-terminal wire jumper with a black rubber plug that will need to be reused. A replacement 2-terminal wire jump and plug are included just in case.

Fits:

Make	Model	Year	Note
Polaris	Sportsman 600 Twin	2004-2005	Count OE stator poles. Only repalces 18-pole stator.
Polaris	Sportsman 700 Twin	2004-2005	Count OE stator poles. Only repalces 18-pole stator.
Polaris	Sportsman 700 Twin	2006
Polaris	Sportsman MV7	2005	Count OE stator poles. Only repalces 18-pole stator.

Specifications
Compatible Brand:	Fits Polaris
Internal Diameter (mm):	40
External Diameter (mm):	107
Thickness (mm):	18
Number of wires:	8
Number of connectors:	11
Number of terminals:	11
Notes:	N/A
Number:	285670

Product Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
