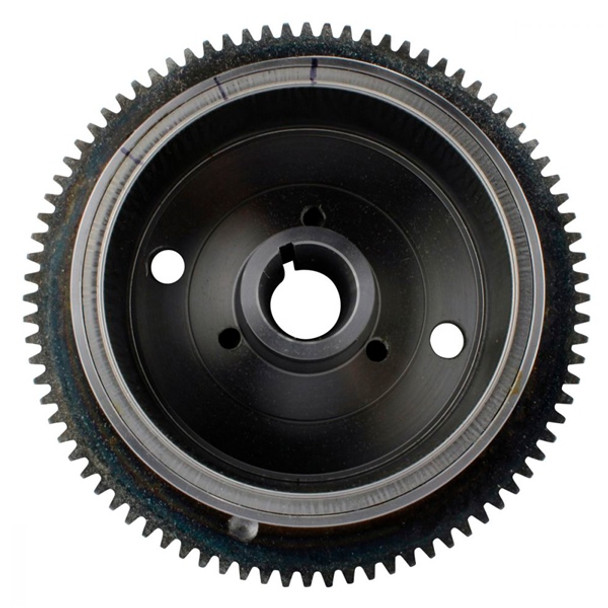

Kimpex HD Flywheel 345235 for Polaris Sportsman 600 700 Twin 2002-2004

Part Note: Only works with AC ignition by Ducati that has CDI/Coil unit mounted behind the headlight.

Fits:

Make	Model	Year	Note
Polaris	Sportsman 600 Twin	2003
Polaris	Sportsman 600 Twin	2004	Will only fit if built before 02/23/2003
Polaris	Sportsman 700 Twin	2002-2003
Polaris	Sportsman 700 Twin	2004	Will only fit if built before 02/23/2003

Specifications
External Diameter (mm):	168
Internal Diameter (mm):	109
External Thickness (mm):	52
Internal Thickness (mm):	42
Number:	345235

Product Features

• Flywheel with stronger magnets, this flywheel can be used as a direct replacement to the OEM
• All products are tested
• One year limited warranty

Ski-doo 1200 snowmobiles are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.
Solution: Seal that protects the magnet�s epoxy from oil additives
